Algorithms > InfWorkshop

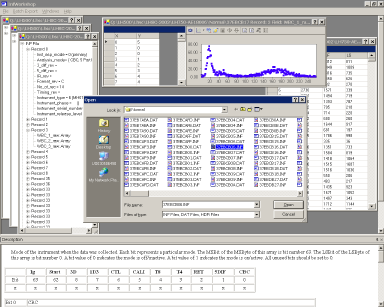

InfWorkshop is a tool that allows you to read and see the content of an Inf/Hdr file and its related Dat files.

Features of InfWorkshop include

• View each record and field in the Inf file. Arrays fields are displayed in a table and/or a chart. There are different charts to choose from to display the data. The data can also be exported to a CSV file for further analysis.

• View each event group in the Dat file. The data in each event group is displayed in a table and/or a chart. There are different charts to choose from to display the data. The data can also be exported to an LMD files for further analysis.

• View each field in the Hdr file. Arrays fields are displayed in a table and/or a chart.   There are different charts to choose from to display the data.

• Export to CSV. Fields and records can be exported to a CSV file.

• Export to LMD. One or more event groups can be exported to an LMD file.

If you are using or plan to use this application please inform Patricio Vidal so that you can be consulted before making functional changes and be informed of futures updates.

How to Install

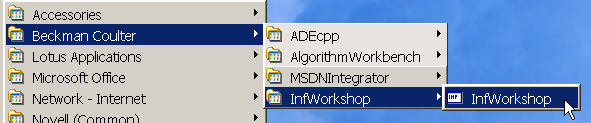

Download and execute the install file InfWorkshop.msi.  This will by default install the InfWorkshop application to your local drive in <drive>:\Program Files\Beckman Coulter\InfWorkshop and create the InfWorkshop entry inside the Beckman Coulter  group in your Start menu:

If the installation fails you may need to install or update the Microsoft Installer Version 2.0 for Windows NT/2000

Documentation

• Integrated Help file: InfWorkshop.chm

• Test Procedure:  "InfWorkshop Test Procedure", CPDM P/N 626426

• Software Configuration Management Specification:  "Software Configuration Management Specification (SCMS) for InfWorkshop", CPDM P/N 624377

• Test logs:

• Requirements.Test.Log.htm


• Test Summary Report: "InfWorkshop v1.0 Test Summary Report", CPDM P/N 626634

Release Notes

• Version 1.0

  • Open a sample from open menu, batch screens, drag and drop from Windows Explorer and double clicking from Windows Explorer.

  • View Inf, Dat and Hdr information.  Including the ability to double click on array information as table and charts.

  • Export contents of Inf files to CSV files.

  • Export contents of Dat files to LMD files.

Last Updated: 11/21/2003 , Diane Strait
